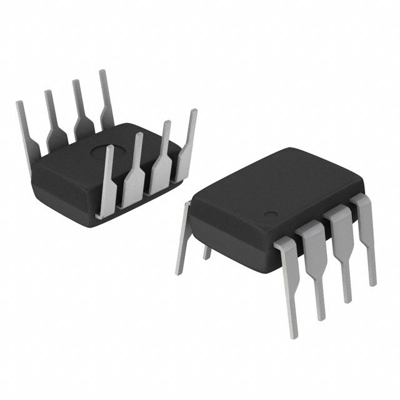

INA118P | Texas Instruments
Single Low Power Instrumentation Amplifier, PDIP-8, INA118P
Order No.: 40S8302
EAN: 4099879091741
MPN:
INA118P
Unit Price (€ / pc.)
17.5882 € *
Available in 5 Days: 143 pcs. - if ordered today
Instrumentation amplifier, INA118P, TI
The INA118P is a low-power, general-purpose instrumentation amplifier offering excellent accuracy. The versatile, three op amp design and small size make this device an excellent choice for a wide range of applications.
Features
- Low offset voltage
- Low drift
- Inputs protected
- High CMR
Applications
- Bridge amplifier
- RTD sensor amplifier
- Medical instrumentation
- Data acquisition
Technical specifications
| Enclosure | PDIP-8 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Version | low power instrumentation amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MY |
| MSL | MSL 1 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
