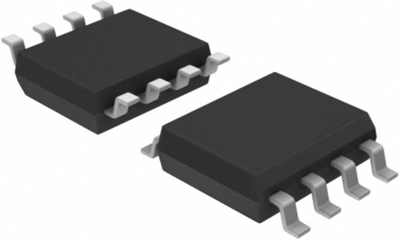

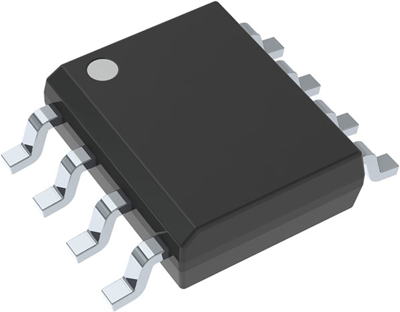

TL7705ACD (SMD) | Texas Instruments

Single-supply voltage supervisor, TL7705ACD (SMD), Texas Instruments

The TL7705ACD (SMD) integrated-circuit supply-voltage supervisor is designed specifically for use as a reset controller in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power-up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET\ go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET\ go active.

Features

• Power-On Reset Generator
• Automatic Reset Generation After Voltage Drop
• Wide Supply-Voltage Range
• Precision Voltage Sensor
• Temperature-Compensated Voltage Reference
• Externally Adjustable Pulse Duration
