CSD95375Q4M | Texas Instruments
Texas Instruments synchronous buck NexFET power stage, 25 A, VSON-8, CSD95375Q4M
Order No.: 56S7674
MPN:
CSD95375Q4M
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 1 Week

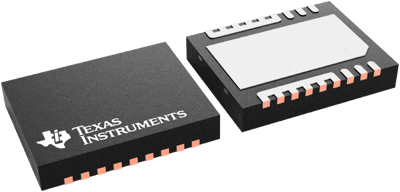

Power Stage, CSD95375Q4M, Texas Instruments
The CSD95375Q4M NexFET Power Stage is a highly optimized design for use in a high power, high density Synchronous Buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response.
Features
- System Optimized PCB Footprint
- Diode Emulation Mode with FCCM
- Integrated Bootstrap Diode
- Shoot Through Protection
Applications
- Ultrabook/Notebook DC/DC Converters
- Multiphase Vcore and DDR Solutions
- Point of Load Synchronous Buck in Networking, Telecom, and Computing Systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 8 W | |
| max. operating temperature | 150 °C | |
| Max. current | 25 A | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Enclosure | VSON-8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
