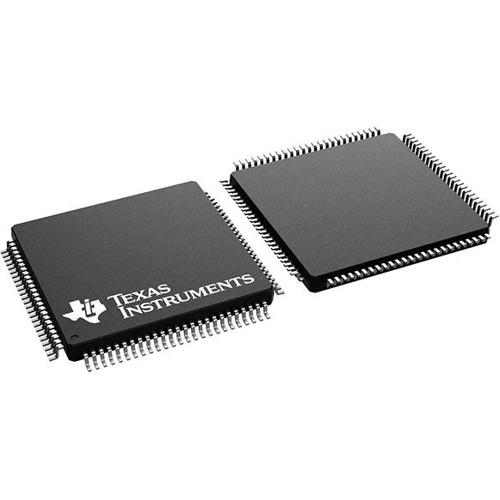

TMS320LF2406APZS | Texas Instruments
C24x microcontroller, 16 bit, 40 MHz, LQFP-100, TMS320LF2406APZS
NCNR (non cancelable / non returnable)
DSP Controller, TMS320LF2406APZS, Texas Instruments
The TMS320LF2406APZS is a fixed-point digital signal processor (DSP) controller in the TMS320C2000™ platform. It features the enhanced TMS320™ C2xx core CPU for low-cost, low-power, and high-performance processing, delivering up to 40 MIPS. The device integrates advanced peripherals optimized for digital motor and motion control, providing a true single-chip DSP controller. It is code-compatible with existing C24x™ DSP controllers while offering higher processing performance and greater peripheral integration. The TMS320LF2406APZS device is available with a variety of memory sizes, including Flash devices up to 32K words for reprogrammable solutions. Flash devices include a 256-word boot ROM for in-circuit programming and a password-based code security feature to protect proprietary code. ROM versions are fully pin-compatible with their Flash counterparts.
Features
- On-chip memory
- Watchdog (WD) Timer Module
- Serial Communications Interface (SCI)
- Power Management:
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-100 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | C24x | |
| Core Size | 16 bit | |
| Clock frequency | 40 MHz | |
| Number of I/Os | 64 | |
| Memory size | 64 KB | |
| Data RAM Size | 5 KB | |
| Protocol | SPI, UART, CAN | |
| Number of pins | 100 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 2 |
| Country of origin | US |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
