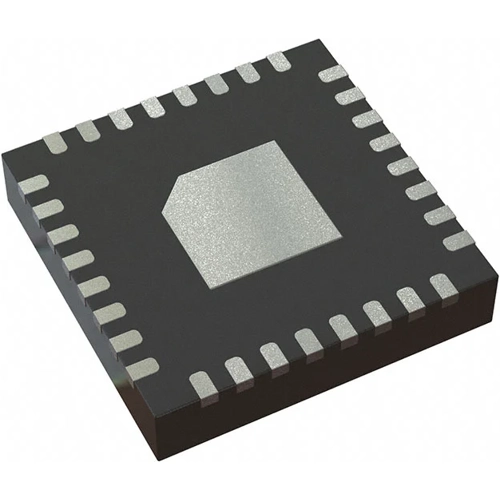

MSP430I2020TRHBT | Texas Instruments

Mixed-Signal Microcontroller, MSP430I2020TRHBT, Texas Instruments

The MSP430I2020TRHBT microcontroller (MCU) is part of the MSP430 Metrology and Monitoring product. The architecture and integrated peripherals, combined with five extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 5 µs. The MSP430I2020 MCU includes a high-performance 24-bit sigma-delta ADC, two eUSCIs (one eUSCI_A module and one eUSCI_B module), two 16-bit timers, a hardware multiplier, and up to 16 I/O pins.

Features

• High-performance analog
• Ultra-low power consumption
• Intelligent digital peripherals
• Enhanced universal serial communication interfaces (eUSCIs)
• Flexible power management system
• Clock system
• Development tools and software (also see Tools and Software)

Applications

• Metering
• Submetering
• Power monitoring and control
• Industrial sensors
• 1-phase AC and DC power monitoring
• 2-phase electronic meters
• Smart plugs
• Smart power strips
• Medical - multiple-parameter patient monitoring
