MSP430FR6972IPM | Texas Instruments

MSP430 microcontroller, 16 bit, 16 MHz, LQFP-64, MSP430FR6972IPM

Order No.: 53S2243
MPN:
MSP430FR6972IPM
Series: MSP430™ FRAM
MSP430FR6972IPM Texas Instruments Microcontrollers

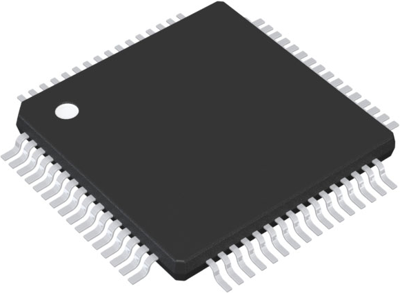

Image may differ
Unit Price (€ / pc.)
5.0346 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
50.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
5.0346 €

Mixed-Signal Microcontroller, MSP430FR6972IPM, Texas Instruments

The MSP430FR6972IPM is an ultra-low-power microcontroller that features embedded nonvolatile FRAM, a 16-bit CPU, and a tailored set of peripherals designed for a wide range of applications. Its architecture-combined with FRAM and intelligent peripheral integration-is optimized with seven low-power modes to enable extended battery life in portable and wireless sensing applications. FRAM is a nonvolatile memory technology that merges the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all while offering lower overall power consumption.

Features

  • Embedded microcontroller
  • Optimized Ultra-Low-Power Modes
  • Ultra-Low-Power Ferroelectric RAM (FRAM)
  • Intelligent Digital Peripherals
  • High-performance analog
  • Multifunction Input/Output Ports
  • Flexible Clock System

Applications

  • Heat Cost Allocators
  • Utility Meters – Electricity, Water, and Gas
  • Thermostats
  • Portable Medical Equipment
  • Sensor Management
  • Weigh Scales
Technical specifications
Filter Property Value
Enclosure LQFP-64
Assembly SMD
Version FRAM
Processor core MSP430
Core Size 16 bit
Clock frequency 16 MHz
Number of I/Os 51
Memory size 64 KB
Data RAM Size 2 KB
Protocol I2C, IrDA, SCI, SPI, UART/USART
Voltage 1.8-3.6 V
Number of pins 64
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 85423190
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
