MSP430FR6927IRGCT | Texas Instruments

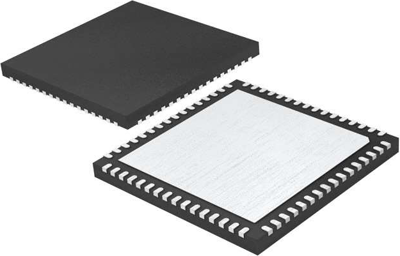

MSP430 microcontroller, 16 bit, 16 MHz, VQFN-64, MSP430FR6927IRGCT
Unit Price (€ / pc.)
5.0321 € *
Standard delivery time from the manufacturer is: 2 Weeks
Mixed-Signal Microcontroller, MSP430FR6927IRGCT, Texas Instruments
The MSP430FR6927IRGCT ultra-low-power (ULP) microcontroller combines embedded FRAM with a holistic ultra-low-power system architecture, enabling increased performance while reducing energy consumption. Its FRAM technology delivers the speed, flexibility, and endurance of SRAM along with the stability and reliability of flash-at significantly lower power. Equipped with a ULP 16-bit MSP430 CPU and intelligent peripherals, the MSP430FR6927IRGCT is designed for a variety of application needs. Its ultra-low-power architecture features seven optimized low-power modes to help extend battery life in energy-constrained environments.
Features
- Embedded microcontroller
- Optimized Ultra-Low-Power Modes
- Ultra-Low-Power Ferroelectric RAM (FRAM)
- Intelligent Digital Peripherals
- High-performance analog
- Multifunction Input/Output Ports
- Flexible Clock System
Applications
- Water Meters
- Heat Meters
- Heat Cost Allocators
- Portable Medical Meters
- Data Logging
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | VQFN-64 | |
| Assembly | SMD | |
| Version | FRAM | |
| Processor core | MSP430 | |
| Core Size | 16 bit | |
| Clock frequency | 16 MHz | |
| Number of I/Os | 52 | |
| Memory size | 64 KB | |
| Data RAM Size | 2 KB | |
| Protocol | I2C, IrDA, SCI, SPI, UART/USART | |
| Voltage | 1.8-3.6 V | |
| Number of pins | 64 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
