MSP430FR60471IPZ | Texas Instruments

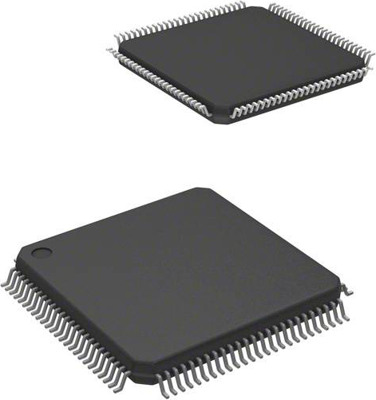

MSP430 microcontroller, 16 bit, 16 MHz, LQFP-100, MSP430FR60471IPZ
Ultrasonic Sensing MCU, MSP430FR60471IPZ, Texas Instruments
The MSP430FR60471IPZ is a powerful and highly integrated microcontroller (MCU) optimized for ultrasonic water and heat metering applications. It features an integrated Ultrasonic Sensing Solution (USS) module that delivers high accuracy across a wide range of flow rates. By maximizing integration and requiring minimal external components, the USS module helps enable ultra-low-power metering solutions while reducing overall system cost. The MSP430FR60471IPZ implements high-speed ADC-based signal acquisition, followed by optimized digital signal processing using the integrated Low-Energy Accelerator (LEA), providing a high-accuracy, ultra-low-power solution ideal for battery-powered metering devices.
The USS module includes a programmable pulse generator (PPG) and a physical interface (PHY) with a low-impedance output driver to ensure optimal sensor excitation and accurate impedance matching, minimizing zero-flow drift (ZFD). It also integrates a programmable gain amplifier (PGA) and a high-speed, 12-bit, 8-MSPS sigma-delta ADC (SDHS) for precise signal acquisition from industry-standard ultrasonic transducers.
Features
- Metering test interface (MTIF)
- Low-energy accelerator (LEA)
- Embedded microcontroller
- Optimized ultra-low-power modes
- Ferroelectric random access memory (FRAM)
- Intelligent digital peripherals
- High-performance analog
- Multifunction input/output ports
Applications
- Ultrasonic smart water meter
- Ultrasonic smart heat meter
- Liquid level sensing
- Water leak detector
Filter | Property | Value |
---|---|---|
Enclosure | LQFP-100 | |
Assembly | SMD | |
Version | FRAM | |
Processor core | MSP430 | |
Core Size | 16 bit | |
Clock frequency | 16 MHz | |
Number of I/Os | 76 | |
Memory size | 256 KB | |
Data RAM Size | 8 KB | |
Protocol | I2C, IrDA, SCI, SPI, UART/USART | |
Voltage | 1.8-3.6 V | |
Number of pins | 100 | |
min. operating temperature | -40 °C | |
max. operating temperature | 85 °C |
Property | Value |
---|---|
Customs tariff number | 85423190 |
Property | Value |
---|---|
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
