MSP430FR6043IPN | Texas Instruments

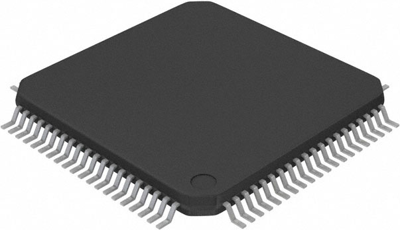

MSP430 microcontroller, 16 bit, 16 MHz, LQFP-80, MSP430FR6043IPN

Order No.: 53S2231
MPN:
MSP430FR6043IPN
Series: MSP430™ FRAM
MSP430FR6043IPN Texas Instruments Microcontrollers
Image may differ
Unit Price (€ / pc.)
12.8387 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
128.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
12.8387 €

Ultrasonic Sensing MCU, MSP430FR6043IPN, Texas Instruments

The MSP430FR6047 microcontroller offers an integrated Ultrasonic Sensing Solution (USS_A) module that delivers high accuracy across a wide range of flow rates. This module enables ultra-low-power metering while reducing overall system cost through maximum integration, requiring minimal external components. The MSP430FR6047 implements high-speed, ADC-based signal acquisition, followed by optimized digital signal processing using the low-energy accelerator (LEA), providing a high-accuracy and ultra-low-power metering solution ideal for battery-powered applications.

The integrated USS_A module features a programmable pulse generator (PPG) and a physical interface (PHY) with a low-impedance output driver for optimal sensor excitation and impedance matching, helping minimize zero-flow drift (ZFD). Additionally, it includes a programmable gain amplifier (PGA) and a high-speed 12-bit, 8-MSPS sigma-delta ADC (SDHS) for precise signal acquisition from industry-standard ultrasonic transducers.

Features

  • Metering test interface (MTIF)
  • Low-energy accelerator (LEA)
  • Embedded microcontroller
  • Optimized ultra-low-power modes
  • Ferroelectric random access memory (FRAM)
  • Intelligent digital peripherals
  • High-performance analog
  • Multifunction input/output ports

Applications

  • Ultrasonic smart water meter
  • Ultrasonic smart gas meter
  • Ultrasonic smart heat meter
  • Flow transmitter
Technical specifications
Filter Property Value
Enclosure LQFP-80
Assembly SMD
Version FRAM
Processor core MSP430
Core Size 16 bit
Clock frequency 16 MHz
Number of I/Os 57
Memory size 64 KB
Data RAM Size 12 KB
Protocol I2C, IrDA, SCI, SPI, UART/USART
Voltage 1.8-3.6 V
Number of pins 80
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 85423190
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
