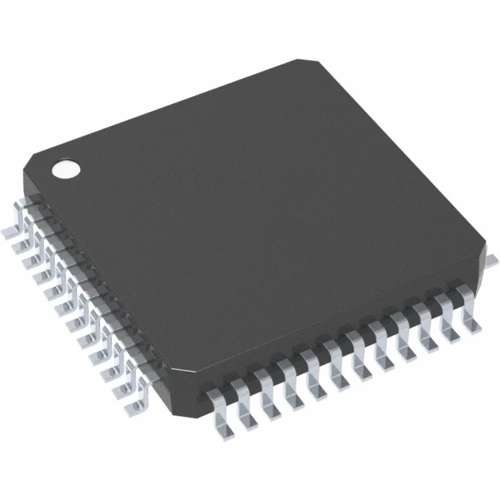

MSP430F5310IPT | Texas Instruments

Mixed-Signal Microcontroller, MSP430F5310IPT, Texas Instruments

The MSP430F5310IPT product of ultra-low-power microcontroller consists of a device featuring a set of peripherals targeted for a specific application. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 5 µs. The MSP430F5310IPT device is a microcontroller configuration with a 3.3-V LDO, four 16-bit timers, a high-performance 10-bit ADC, two USCIs (1), a hardware multiplier, DMA, an RTC module with alarm capability, and 31 I/O pins.

Features

• Ultra-Low Power Consumption
• Off mode
• Wake up from standby mode in less than 5 µs
• Flexible power-management system
• Unified clock system (UCS)

Applications

• Analog and Digital Sensor Systems
• Digital motor control
• Remote controls
• Thermostats
• Digital timers
• Hand-held meters
