M0C1104QDGS20RQ1 | Texas Instruments

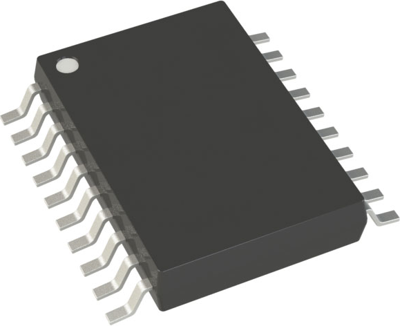

ARM Cortex M0+ microcontroller, 32 bit, 24 MHz, VSSOP-20, M0C1104QDGS20RQ1
Mixed-Signal Microcontroller, M0C1104QDGS20RQ1, Texas Instruments
The MSPM0C1104 microcontroller offers a compact and cost-effective solution for low-power embedded applications, featuring 16KB of embedded flash memory and 1KB of SRAM. It integrates a high-speed on-chip oscillator with an accuracy range of -2% to +1.2%, removing the need for an external crystal in many designs. Key integrated features include a 1-channel DMA controller, a CRC-16 accelerator, and essential analog peripherals such as a 12-bit, 1.5-MSPS ADC using VDD as the voltage reference and an on-chip temperature sensor.
On the digital side, the MSPM0C1104 includes one 16-bit advanced timer, two 16-bit general-purpose timers, a windowed watchdog timer, and versatile communication interfaces-one UART, one SPI, and one I²C. These peripherals support a wide range of protocols, including LIN, IrDA, DALI, Manchester, Smart Card, SMBus, and PMBus. As part of the TI MSPM0 MCU platform, the MSPM0C1104 combines a flexible low-power architecture with essential analog and digital integration, making it ideal for space- and power-constrained portable measurement and sensing applications.
Features
- High-performance analog peripherals
- Optimized low-power modes
- Intelligent digital peripherals
- Enhanced communication interfaces
- Clock system
- Data integrity
- Flexible I/O features
- Development support
Applications
- Automotive body electronics and Lighting
- Automotive Gateway
- Steering Wheel Systems
- Automotive Motor Control
- Automotive Interior Lighting
- Door handle modules
- Kick to open modules
- Vehicle Occupancy Detection
Filter | Property | Value |
---|---|---|
Enclosure | VSSOP-20 | |
Assembly | SMD | |
Version | flash | |
Processor core | ARM Cortex M0+ | |
Core Size | 32 bit | |
Clock frequency | 24 MHz | |
Number of I/Os | 18 | |
Memory size | 16 KB | |
Data RAM Size | 1 KB | |
Protocol | DALI, I2C, IrDA, LINbus, SmartCard, SMBus, SPI, UART/USART | |
Voltage | 1.62-3.6 V | |
Number of pins | 20 | |
min. operating temperature | -40 °C | |
max. operating temperature | 125 °C |
Property | Value |
---|---|
Customs tariff number | 85423190 |
Property | Value |
---|---|
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
