XTR110AG | Texas Instruments

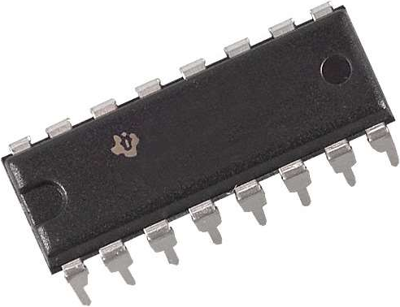

Transmitter loop IC, PDIP-16, Texas Instruments XTR110AG
Order No.: 61S7020
MPN:
XTR110AG
Unit Price (€ / pc.)
88.7502 € *
Standard delivery time from the manufacturer is: 2 Weeks
Voltage-to-current converter/transmitter, XTR110AG, Texas Instruments
The XTR110AG is a precision voltage-to-current converter designed for analog signal transmission. It accepts inputs of 0 to 5V or 0 to 10V and can be connected for outputs of 4mA to 20mA, 0mA to 20mA, 5mA to 25mA, and many other commonly used ranges. A precision on-chip metal film resistor network provides input scaling and current offsetting. An internal 10V voltage reference can be used to drive external circuitry.
Applications
- Industrial Process Control
- Pressure/temperature Transmitters
- Current-mode Bridge Excitation
- Grounded Transducer Circuits
- Current Source Reference For Data Acquisition
- Programmable Current Source For Test Equipment
- Power Plant/e
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | transmitter loop IC | |
| Assembly | THT | |
| Enclosure | PDIP-16 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
