TL16C452FN | Texas Instruments

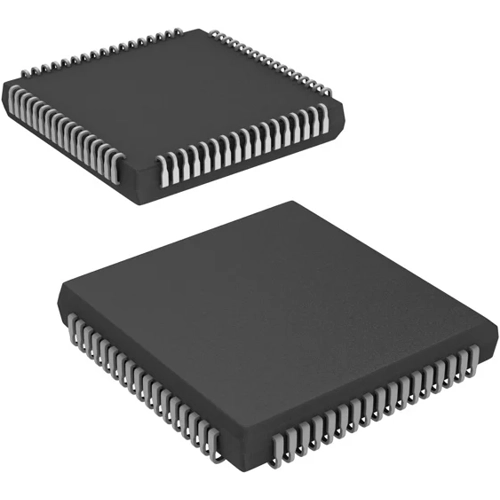

Dual UART, with parallel interface, without FIFO, PLCC-68, Texas Instruments TL16C452FN
Order No.: 70S1720
MPN:
TL16C452FN
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.0206 € *
Available in 5 Days: 198 pcs. - if ordered today
Dual UART, TL16C452FN, Texas Instruments
The TL16C452FN is a single-channel asynchronous communications element (ACE) with a Centronix-type parallel-port interface. It provides serial-to-parallel conversion for data received from a peripheral device or modem and parallel-to-serial conversion for data transmitted by a CPU. The parallel interface offers a bidirectional port that conforms to Centronix-type printer standards. The CPU can read status information at any time, including modem signals (CTS, DSR, RLSD, RI), transmitter and receiver states, data errors, and printer status. The TL16C452FN also provides control over modem signals (RTS, DTR), interrupt enables, baud rate programming, and parallel-port control signals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | dual UART | |
| Version | with parallel interface, without FIFO | |
| Enclosure | PLCC-68 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
