SN75463P | Texas Instruments

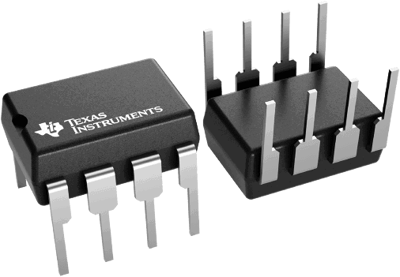

Dual output driver with OR logic inputs, PDIP-8, Texas Instruments SN75463P
Order No.: 46S3600
MPN:
SN75463P
Unit Price (€ / pc.)
1.3685 € *
Standard delivery time from the manufacturer is: 1 Week
Dual output driver, SN75463P, Texas Instruments
The SN75463P is a dual peripheral AND, NAND, and OR driver respectively (assuming positive logic), with the output of the gate internally connected to the base of the npn output transistor.
Features
- High-Voltage Outputs
- Medium-Speed Switching
- Circuit Flexibility for Varied Applications and Choice of Logic Function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| Enclosure | PDIP-8 | |
| Input voltage | 5.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
