SN75160BN | Texas Instruments

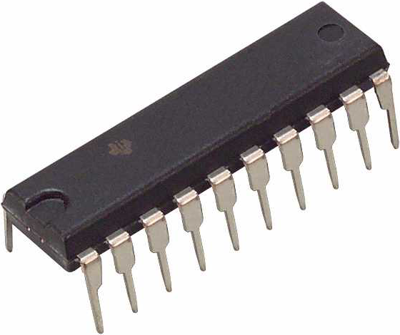

Eight-port bus transceiver/universal interface, transceiver, PDIP-20, Texas Instruments SN75160BN
NCNR (non cancelable / non returnable)
Octal General-Purpose Interface Bus Transceiver, SN75160BN, Texas Instruments
The SN75160B 8-channel general-purpose interface bus (GPIB) transceiver is a monolithic, high-speed, low-power Schottky device designed for two-way data communication over a single-ended transmission line. It is designed to meet the requirements of IEEE Standard 488-1978. The transceiver features a driver output that can operate in either the passive-pullup or 3-state mode. If talk enable (TE) is high, this port has the characteristics of a passive-pullup output when pullup enable (PE) is low and of a 3-state output when PE is high. Taking TE low places the port in the high-impedance state. The driver output is designed to handle loads up to 48 mA of sink current. Output glitches during power-up and power-down are eliminated by an internal circuit that disables both the bus and receiver outputs. The output does not load the bus when VCC = 0.
Features
- 8-Channel Bidirectional Transceiver
- Power-Up/Power-Down Protection
- High-Speed, Low-Power Schottky Circuitry
- High-Impedance pnp Inputs
- Open-Collector Driver Output Option
| Filter | Property | Value |
|---|---|---|
| Product type | eight-port bus transceiver/universal interface | |
| Version | transceiver | |
| Enclosure | PDIP-20 | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
