SN74LVC574ADW | Texas Instruments

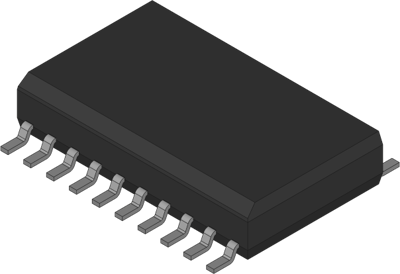

Octal D-Type Edge-Triggered Flip-Flop, SOIC-20, Texas Instruments SN74LVC574ADW
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
18.15 € *
Price list
Quantity
Price per unit*
25 pcs.
0.7259 €
100 pcs.
0.7021 €
250 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
D-type flip-flops, SN74LVC574ADW, Texas Instruments
The SN74LVC574ADW is an octal edge-triggered D-type flip-flop is designed for 1.65-V to 3.6-V VCC operation. This device features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads, they are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Features
- Operates from 1.65 V to 3.6 V
- Inputs accept voltages to 5.5 V
- Ioff supports live insertion, partial-power-down mode, and back-drive protection
- Supports mixed-mode signal operation on all ports
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Product type | Octal D-Type Edge-Triggered Flip-Flop | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Output current | 24 mA | |
| Input voltage | 5.5 V | |
| Enclosure | SOIC-20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
