SN74LVC244ADW | Texas Instruments

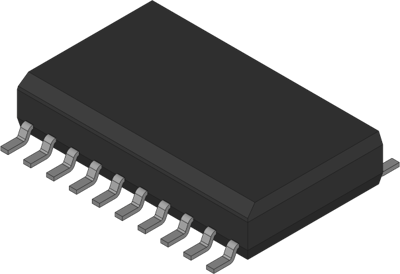

Octal Buffer/Driver, SOIC-20, Texas Instruments SN74LVC244ADW
Order No.: 44S4360
EAN: 4099879089465
MPN:
SN74LVC244ADW
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
25 pcs.
0.7021 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Noninverting buffer and driver, SN74LVC244ADW, Texas Instruments
The SN74LVC244ADW is an octal bus buffer/driver with 3-state outputs and is designed for asynchronous communication between data buses.
Features
- Operates from 1.65 V to 3.6 V
- Can be used as a down translator to translate inputs from a maximum of 5.5 V
- Ioff supports live insertion, partial-power-down mode, and back-drive protection
- Supports mixed-mode signal operation on all ports
Applications
- Telecom infrastructure
- Network switches
- Motor drivers
- LED displays
- I/O Expanders
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-20 | |
| Output current | 24 mA | |
| Assembly | SMD | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Product type | Octal Buffer/Driver | |
| Input voltage | 3.6 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | TH |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
