SN74LVC14AD | Texas Instruments

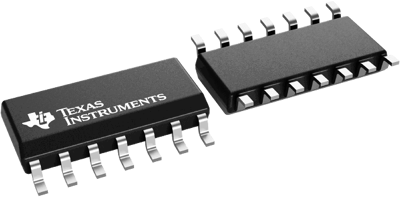

Hex schmitt trigger inverter, SOIC-14, Texas Instruments SN74LVC14AD
Unit Price (€ / pc.)
0.7140 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
35.70 € *
Price list
Quantity
Price per unit*
50 pcs.
0.7140 €
100 pcs.
0.6188 €
250 pcs.
0.5712 €
500 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex Schmitt-Trigger Inverter, SN74LVC14AD, Texas Instruments
The SN74LVC14A Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation. The device contains one inverter and performs the Boolean function Y = A. The input can be driven from either a 3.3-V or 5-V device. This feature allows the use of the device as a translator in a mixed 3.3-V or 5-V system environment.
Applications
- Barcode scanner
- Cable solutions
- Embedded PCs
- Fingerprint biometrics
- Network attached storage (NAS)
- Server motherboard and PSU
- Software defined radio (SDR)
- Video communications systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of channels | 6 | |
| max. operating temperature | 125 °C | |
| Input voltage | 3.6 V | |
| Product type | hex schmitt trigger inverter | |
| min. operating temperature | -40 °C | |
| Output current | 24 mA | |
| Enclosure | SOIC-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
