SN74LS595N | Texas Instruments

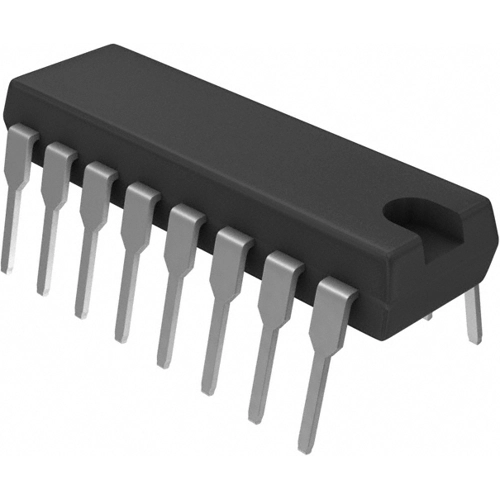

Shift register, with serial input/output registers, PDIP-16, Texas Instruments SN74LS595N
Unit Price (€ / pc.)
15.113 € *
Standard delivery time from the manufacturer is: 1 Week
Serial-in shift registers, SN74LS595N, Texas Instruments
This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state (SN74LS595N) outputs. Separate clocks are provided for both the shift register and the storage register. The shift register has a direct-overriding clear, serial input, and serial output pin for cascading.
Features
- Shift Register Has Direct Clear
- Accurate Shift Frequency:DC to 20 MHz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | shift register | |
| Version | with serial input/output registers | |
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
