SN74LS593N | Texas Instruments

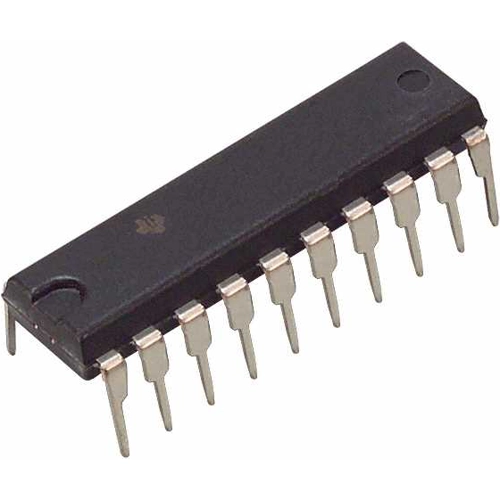

8 bit universal shift register, positive, PDIP-20, Texas Instruments SN74LS593N
Unit Price (€ / pc.)
18.8496 € *
Standard delivery time from the manufacturer is: 12 Weeks
8-Bit Binary Counter, SN74LS593N, Texas Instruments
The SN74LS593N comes in a 20-pin package and has all the features of the 'LS592 plus 3-state I/O, which provides parallel counter outputs. The tables below show the operation of the enable (CCKEN, CCKEN\) inputs. A register clock enable (RCKEN\) is also provided.
Features
- Parallel 3-State I/O: Register Inputs/ Counter Outputs
- Counter has Direct Overriding Load and Clear
- Accurate Counter Frequency:DC to 20 MHz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 8 bit universal shift register | |
| Version | positive | |
| Enclosure | PDIP-20 | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
