SN74LS541N | Texas Instruments

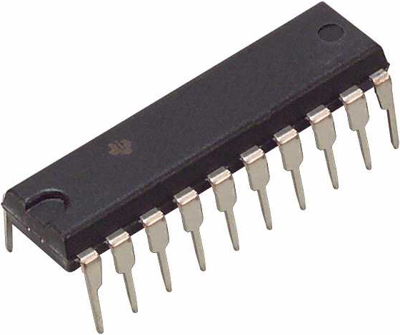

Octal Buffer/Driver, with tri-state outputs, PDIP-20, Texas Instruments SN74LS541N
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 2 Weeks
Octal Buffers And Line Drivers, SN74LS541N, Texas Instruments
This octal buffer and line driver is designed to have the performance of the popular SN74LS240 series and, at the same time, offer a pinout having the input and output on opposite sides of the package. This arrangement greatly enhances printed circuit board layout. The three-state control gate is a 2-input NOR such that if either G1\ or G2\ is high, all eight outputs are in the high-impedance state. The SN74LS541N offers true data at the output.
Features
- P-N-P Inputs Reduce D-C Loading
- Hysteresis at Inputs Improves Noise Margins
- Data Flow-thru Pinout (All Inputs on Opposite Side from Outputs)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-20 | |
| max. operating temperature | 70 °C | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| Output current | 24 mA | |
| Version | with tri-state outputs | |
| Product type | Octal Buffer/Driver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
