SN74LS33N | Texas Instruments

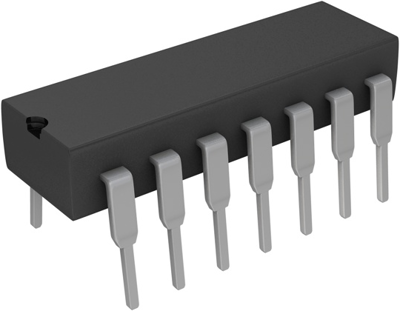

Quad 2 input NOR gate, open collector, PDIP-14, Texas Instruments SN74LS33N

Order No.: 43S3950
MPN:
SN74LS33N
Series: 74LS
SN74LS33N Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
1.2733 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2733 €

Quadruple 2-Input Positive-NOR Buffer, SN74LS33N, Texas Instruments

This device contains one independent 2-input NOR buffer gate with an open-collector output. The open-collector output requires a resistive pull-up to perform logically but can deliver a higher VOH level and is commonly used in wired-AND applications. The SN7433 is characterized for operation from 0°C to 70°C.

Technical specifications
Filter Property Value
Enclosure PDIP-14
max. operating temperature 70 °C
Assembly THT
min. operating temperature 0 °C
Output current 24 mA
Number of channels 4
Version open collector
Product type quad 2 input NOR gate
Logistics
Property Value
Country of origin MY
Customs tariff number 85423390
Original Packaging Bar with 25 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
