SN74LS245N | Texas Instruments

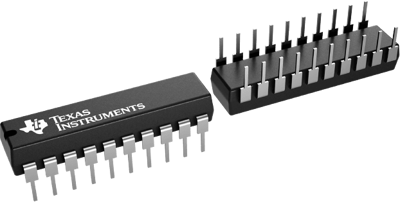

Octal bus transceiver, PDIP-20, Texas Instruments SN74LS245N

Order No.: 43S7800
EAN: 4099879085702
MPN:
SN74LS245N
Series: SN
SN74LS245N Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
91.2968 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,825.94 € *
Price list
Quantity
Price per unit*
20 pcs.
91.2968 €
60 pcs.
88.0362 €
120 pcs.
84.7756 €
240 pcs.
81.5150 €
*incl. VAT plus shipping costs
Subject to prior sale

Octal Bus Transceivers, SN74LS245N, Texas Instruments

The SN74LS245N is an Octal Bus Transceiver IC, designed for asynchronous 2-way communication between data buses. The control-function implementation minimizes external timing requirements. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE)/ input can disable the device so that the buses are effectively isolated.

Features

  • 3-State Outputs Drive Bus Lines Directly
  • PNP Inputs Reduce DC Loading on Bus Lines
  • Hysteresis at Bus Inputs Improves Noise Margins
  • Typical Propagation Delay Times Port to Port, 8 ns

Applications

  • Building Automation
  • Electronic Point of Sale
  • Factory Automation and Control
  • Test and Measurement
Technical specifications
Filter Property Value
Assembly THT
Product type octal bus transceiver
max. operating temperature 70 °C
Input voltage 5.25 V
Output current 24 mA
min. operating temperature 0 °C
Enclosure PDIP-20
Logistics
Property Value
MSL MSL 1
Customs tariff number 85423990
Original Packaging Bar with 20 pieces
Country of origin MY
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
