SN74LS122N | Texas Instruments

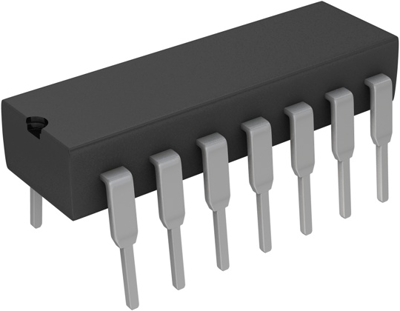

Dual monostable multivibrator, monostable, PDIP-14, Texas Instruments SN74LS122N
Unit Price (€ / pc.)
0.8925 € *
Standard delivery time from the manufacturer is: 2 Weeks
Retriggerable monostable multivibrator, SN74LS122N, Texas Instruments
This d-c triggered multivibrator features output pulse-duration control by three methods. The basic pulse time is programmed by selection of external resistance and capacitance value (see typical application data). The SN74LS122N has an internal timing resistor that allows the circuit to be used with only an external capacitor, if so desired. Once triggered, the basic pulse duration may be extended by retriggering the gated low-level-active (A) or high-level-active (B) input, or be reduced by use of the overriding clear. The SN74LS122N is provided enough Schmitt hysteresis to ensure jitter-free triggering from the B input with transition rate as slow as 0.1 millivolt per nanosecond.
Features
- Retriggerable for Very Long Output Pulses, Up to 100% Duty Cycle
- Overriding Clear Terminates Output Pulse
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Product type | dual monostable multivibrator | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| Version | monostable | |
| Output current | 8 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Country of origin | MX |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
