SN74LS11N | Texas Instruments

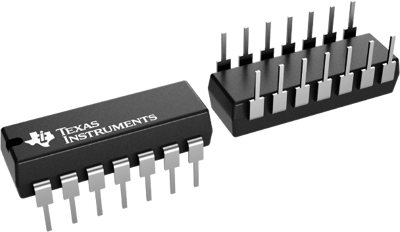

Triple 3-Input Positive AND Gate, PDIP-14, Texas Instruments SN74LS11N
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
10 pcs.
0.6664 €
25 pcs.
0.6188 €
100 pcs.
0.5712 €
250 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
AND gate, SN74LS11N, Texas Instruments
The SN74LS11N contains three independent 3-input AND gate and is characterized for operation from 0°C to 70°C.
Features
- Dependable quality and reability
- Package options include plastic small outline, ceramic chip carriers, flat packages, plastic and ceramic DIPs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C | |
| Assembly | THT | |
| Output current | 8 mA | |
| Enclosure | PDIP-14 | |
| Input voltage | 5.25 V | |
| Product type | Triple 3-Input Positive AND Gate |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
