SN74LS07D | Texas Instruments

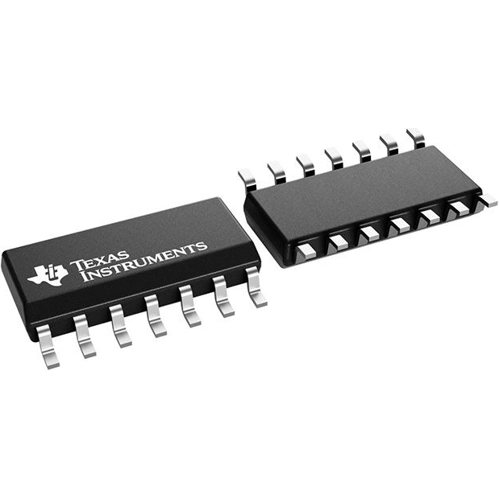

Hex buffer/driver, open collector, SOIC-14, Texas Instruments SN74LS07D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 1 Week
Bipolar Buffer, SN74LS07D, Texas Instruments
This hex buffer and driver features high-voltage open-collector outputs to interface with high-level circuits or drive high-current loads. It is also characterized for use as a buffer for driving TTL inputs. The SN74LS07D has a rated output voltage of 30 V and a maximum sink current of 40 mA. The circuit is compatible with most TTL families. Inputs are diode-clamped to minimize transmission-line effects, simplifying design. Typical power dissipation is 140 mW, and the average propagation delay time is 12 ns.
Features
- Convert TTL Voltage Levels to MOS Levels
- High Sink-Current Capability
- Input Clamping Diodes Simplify System Design
- Open-Collector Driver for Indicator Lamps and Relays
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theaters
- Personal Digital Assistants (PDA)
- Wireless Headsets, Keyboards, and Mice
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | hex buffer/driver | |
| Version | open collector | |
| Enclosure | SOIC-14 | |
| Assembly | SMD | |
| Number of channels | 6 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | US |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
