SN74HCT14DR | Texas Instruments

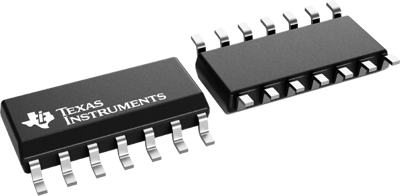

Hex schmitt trigger inverter, SOIC-14, Texas Instruments SN74HCT14DR
Unit Price (€ / pc.)
0.5355 € *
Available: 1,497 pcs.
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4284 €
100 pcs.
0.3213 €
500 pcs.
0.2678 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale
Inverting buffer and driver, SN74HCT14DR, Texas Instruments
The SN74HCT14DR contains six independent inverters. The devices perform the Boolean function Y = A in positive logic.
Features
- Operating voltage range of 4.5 V to 5.5 V
- Outputs can drive up to 10 LSTTL loads
- Low input current of 1 μA max
- Inputs are TTL-voltage compatible
Applications
- Computer peripherals
- AC servo drives
- Desktop computers
- White goods
- UPS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Output current | 4 mA | |
| Input voltage | 5.5 V | |
| Product type | hex schmitt trigger inverter | |
| Enclosure | SOIC-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
