SN74HCT02D | Texas Instruments

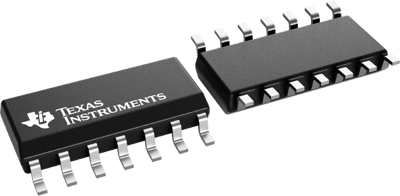

Quadruple 2-Inputs Positive NOR Gate, SOIC-14, Texas Instruments SN74HCT02D
Unit Price (€ / pc.)
0.5831 € *
Available: 916 pcs.
Available in 5 Days: 3,700 pcs. - if ordered today
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
50 pcs.
0.5355 €
100 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale
NOR gate, SN74HCT02D, Texas Instruments
The SN74HCT02D contains four independent 2-input NOR gates. They perform the Boolean function Y = A • B or Y = A + B in positive logic.
Features
- Operating voltage range of 4.5 V to 5.5 V
- Outputs can drive up to 10 LSTTL loads
- Low input current of 1 μA max
- Inputs are TTL-voltage compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| Output current | 4 mA | |
| Enclosure | SOIC-14 | |
| Product type | Quadruple 2-Inputs Positive NOR Gate | |
| min. operating temperature | -40 °C | |
| Input voltage | 5.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
