SN74HC86N | Texas Instruments

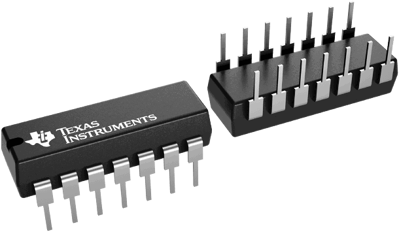

Quad XOR gate, PDIP-14, Texas Instruments SN74HC86N

Order No.: 52S2071
MPN:
SN74HC86N
Series: 74HC
SN74HC86N Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
0.7140 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6307 €
25 pcs.
0.5950 €
100 pcs.
0.5474 €
250 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale

Quadruple 2-Input XOR Gate, SN74HC86N, Texas Instruments

This device contains four independent 2-input XOR gates. Each gate performs the Boolean function Y = A ⊕ B in positive logic.

Features

  • Buffered inputs
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic Ics

Applications

  • Shift registers
  • Detect phase differences in input signals
Technical specifications
Filter Property Value
Assembly THT
Number of channels 4
max. operating temperature 85 °C
Input voltage 6 V
Product type quad XOR gate
min. operating temperature -40 °C
Output current 5.2 mA
Enclosure PDIP-14
Logistics
Property Value
Customs tariff number 85423390
Original Packaging Bar with 25 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
