SN74HC573AN | Texas Instruments

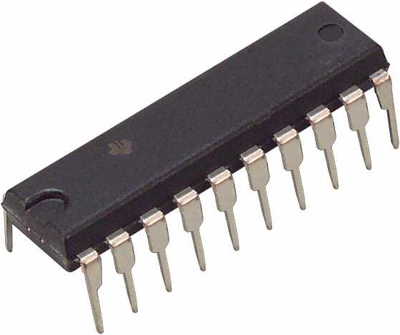

Octal Transparent D-Type Latches, with tri-state outputs, PDIP-20, Texas Instruments SN74HC573AN
Unit Price (€ / pc.)
0.7259 € *
Available in 5 Days: 1,380 pcs. - if ordered today
Total Price:
14.52 € *
Price list
Quantity
Price per unit*
20 pcs.
0.7259 €
50 pcs.
0.6426 €
100 pcs.
0.5950 €
250 pcs.
0.5474 €
500 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
Octal Transparent D-Type Latch, SN74HC573AN, Texas Instruments
The SNx4HC573A device is an octal transparent D-type latch that features a 3-state output designed specifically for driving highly capacitive or relatively low-impedance load. It is particularly suitable for implementing buffer register, I/O port, bidirectional bus driver, and working register. While the latch-enable (LE) input is high, the Q output responds to the data (D) input. When LE is low, the output is latched to retain the data that was set up.
Features
- High-Current 3-State Outputs Drive Bus Lines Directly up to 15 LSTTL Loads
- Low Input Current of 1 µA Maximum
- Bus-Structured Pinout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-20 | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Output current | 7.8 mA | |
| Version | with tri-state outputs | |
| Product type | transparent octal latches (type D) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
