SN74HC573ADW | Texas Instruments

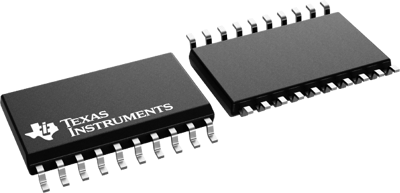

Octal Transparent D-Type Latches, SOIC-20, Texas Instruments SN74HC573ADW
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: On Request
D-type latches, SN74HC573ADW, Texas Instruments
The SN74HC573ADW is a octal transparent D-type latches that features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Features
- Wide operating voltage range of 2 V to 6 V
- High-current 3-state outputs drive bus lines directly or up to 15 LSTTL loads
- Low input current of 1 μA max
- Bus-structured pinout
Applications
- Buffer registers
- Bidirectional bus drivers
- Working registers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-20 | |
| max. operating temperature | 85 °C | |
| Assembly | SMD | |
| Input voltage | 6 V | |
| min. operating temperature | -40 °C | |
| Output current | 7.8 mA | |
| Product type | Octal Transparent D-Type Latches |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
