SN74HC42N | Texas Instruments

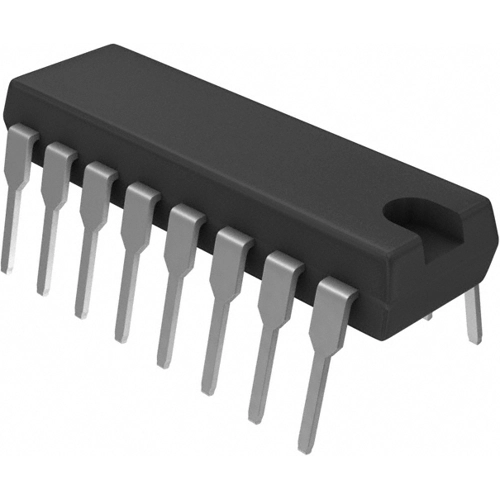

4 line to 10 line decoder, 4 on 10 line, PDIP-16, Texas Instruments SN74HC42N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 200 pcs. - if ordered today
Line Decoder, SN74HC42N, Texas Instruments
This SN74HC42N device is a decimal decoder that consists of eight inverters and ten 4-input NAND gates. The inverters are connected in pairs to make BCD input data available for decoding by the NAND gates. Full decoding of valid input logic ensures that all outputs remain off for invalid input conditions.
Features
- Low Input Current of 1 µA Max
- Full Decoding of Input Logic
- All Outputs Are High for Invalid BCD Conditions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | decoder | |
| Version | 4 on 10 line | |
| Enclosure | PDIP-16 | |
| Assembly | THT | |
| Number of channels | 1 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
