SN74HC373N | Texas Instruments

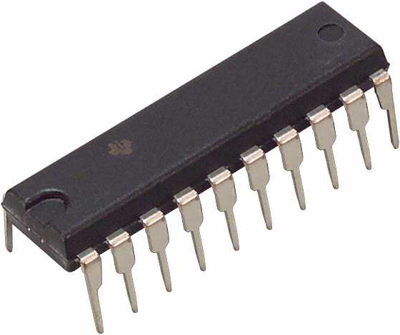

Octal Transparent D-Type Latches, with tri-state outputs, PDIP-20, Texas Instruments SN74HC373N
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 960 pcs. - if ordered today
Octal Transparent D-Type Latch, SN74HC373N, Texas Instruments
This 8-bit latch features 3-state output designed specifically for driving highly capacitive or relatively low-impedance load. It is particularly suitable for implementing buffer register, I/O port, bidirectional bus driver, and working register. The eight latches of the ’HC373 device is transparent D-type latch. While the latch-enable (LE) input is high, the Q output follows the data (D) input. When LE is taken low, the Q output is latched at the level that was set up at the D input.
Features
- High-current 3-state true outputs can drive up to 15 LSTTL loads
- Low input current of 1µA max
- Eight high-current latches in a single package
- Full parallel access for loading
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-20 | |
| Number of channels | 8 | |
| Assembly | THT | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | with tri-state outputs | |
| Product type | transparent octal latches (type D) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | MY |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
