SN74HC273PWR | Texas Instruments

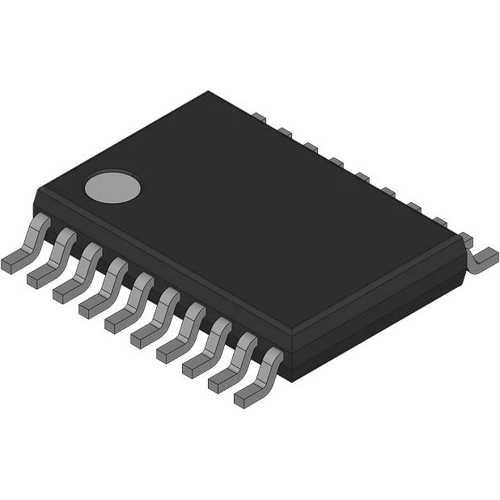

Octal D-type flip-flop, with Clear, TSSOP-20, Texas Instruments SN74HC273PWR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 2,000 pcs. - if ordered today
D-Type Flip-Flop, SN74HC273PWR, Texas Instruments
The SN74HC273PWR device is a positive-edge-triggered D-type flip-flop with a direct active-low clear (CLR) input. Information at the data (D) input meeting the setup time requirement is transferred to the Q output on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect on the output.
Features
- Low input current of 1-µA maximum
- Contain eight flip-flops with single-rail outputs
- Direct clear input
- Individual data input to each flip-flop
Applications
- Shift registers
- Pattern generators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | octal D-type flip-flop | |
| Version | with Clear | |
| Enclosure | TSSOP-20 | |
| Assembly | SMD | |
| Number of channels | 8 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | US |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
