SN74HC245N | Texas Instruments

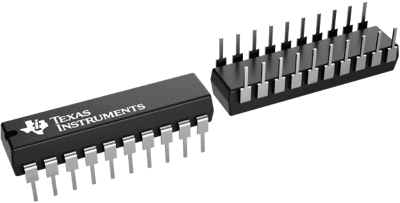

BUS transceiver, PDIP-20, Texas Instruments SN74HC245N
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.4998 €
25 pcs.
0.4760 €
100 pcs.
0.4403 €
250 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale
BUS transceiver, SN74HC245N, Texas Instruments
This octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirement. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Number of channels | 8 | |
| max. operating temperature | 85 °C | |
| Input voltage | 6 V | |
| Product type | BUS transceiver | |
| min. operating temperature | -40 °C | |
| Output current | 7.8 mA | |
| Enclosure | PDIP-20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
