SN74HC132DR | Texas Instruments

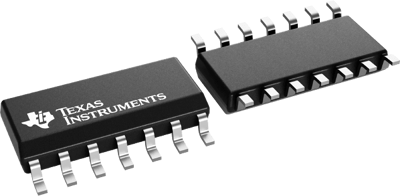

Quadruple 2 input NAND gate, SOIC-14, Texas Instruments SN74HC132DR
Unit Price (€ / pc.)
0.1690 € *
Standard delivery time from the manufacturer is: 8 Weeks
NAND gate, SN74HC132DR, Texas Instruments
The SN74HC132DR contains four independent 2-input NAND gates. Each gate performs the Boolean function Y = A + B in positive logic.
Features
- Buffered inputs
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
Applications
- Alarm / tamper detect circuit
- S-R latch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-14 | |
| Input voltage | 6 V | |
| Product type | quadruple 2 input NAND gate | |
| Output current | 5.2 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,500 pieces |
| MSL | MSL 1 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
