SN74HC00N | Texas Instruments

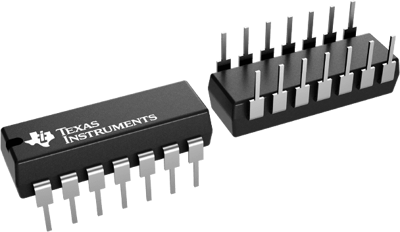

Quadruple 2-Inputs NAND Gate, PDIP-14, Texas Instruments SN74HC00N
Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 1,400 pcs. - if ordered today
NAND gate, SN74HC00N, Texas Instruments
The SN74HC00N contains four independent 2-input NAND Gates. Each gate performs the Boolean function Y = A + B in positive logic.
Features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
Applications
- Alarm/Tamper detect circuit
- S-R latch
Technical specifications
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Input voltage | 6 V | |
| Enclosure | PDIP-14 | |
| Product type | Quadruple 2-Inputs NAND Gate | |
| Assembly | THT | |
| Output current | 5.2 mA |
Download
Logistics
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
