SN74ALS86N | Texas Instruments

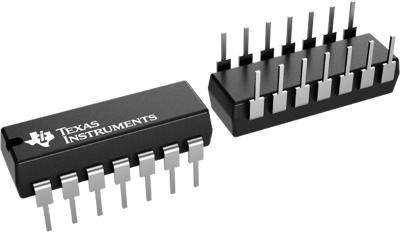

Quadruple 2 inputs exclusive OR gate, PDIP-14, Texas Instruments SN74ALS86N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 1 Week
XOR (exclusive OR) gate, SN74ALS86N, Texas Instruments
The SN74ALS86N is a quadruple 2-input exclusive or gate. A common application is as a true/complement element, if one of the inputs is low the other input is reproduced in true form at the output and If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Features
- Package options include plastic small-outline (D) packages, ceramic chip carriers (FK), standard plastic (N) and ceramic (J) 300-mil DIPs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | quadruple 2 inputs exclusive OR gate | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Input voltage | 5.5 V | |
| Output current | 8 mA | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
