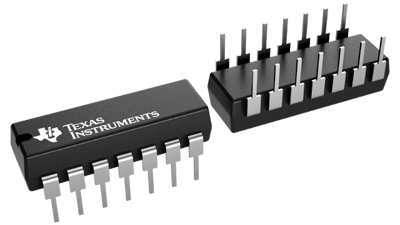

SN74ALS08N | Texas Instruments
4 channel AND gate, two inputs, PDIP-14, Texas Instruments SN74ALS08N
Order No.: 42S7400
MPN:
SN74ALS08N
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 1 Week
Ultra-high-speed (4 ns) bipolar AND gate, SN74ALS08N, Texas Instruments
This device contains one independent 2-input positive-AND gate. It performs the Boolean function Y = A · B in positive logic.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | two inputs | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C | |
| Enclosure | PDIP-14 | |
| Product type | 4 channel AND gate | |
| Number of channels | 4 | |
| Assembly | THT | |
| Input voltage | 7 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
