SN74ABT273N | Texas Instruments

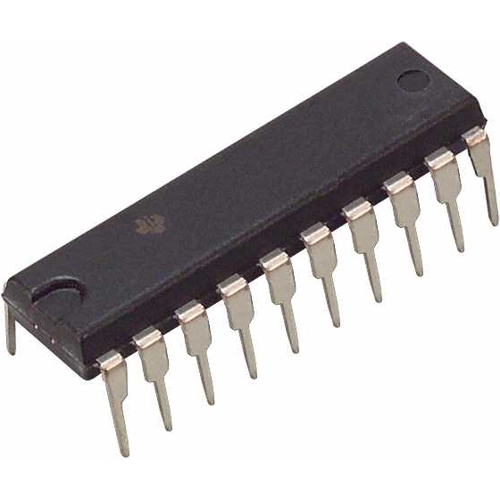

Octal edge triggered D-type flip-flop, with Clear, PDIP-20, Texas Instruments SN74ABT273N
Order No.: 70S1636
MPN:
SN74ABT273N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0213 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.53 € *
Price list
Quantity
Price per unit*
25 pcs.
0.0213 €
100 pcs.
0.0199 €
250 pcs.
0.0186 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Type Flip-Flop, SN74ABT273N, Texas Instruments
The SN74ABT273N is an 8-bit, positive-edge-triggered D-type flip-flop with a direct clear (CLR) input. It is well suited for implementing buffer and storage registers, shift registers, and pattern generators. Data present at the D inputs, meeting setup-time requirements, is transferred to the Q outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a specific voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is held high or low, the D input signal does not affect the output.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | octal edge triggered D-type flip-flop | |
| Version | with Clear | |
| Enclosure | PDIP-20 | |
| Assembly | THT | |
| Number of channels | 8 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
