SN74145N | Texas Instruments

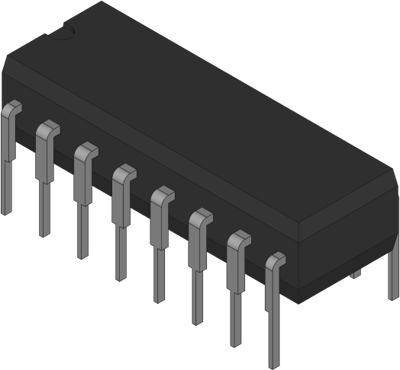

BCD to Decimal Decoder/Driver, PDIP-16, Texas Instruments SN74145N

Order No.: 45S3900
EAN: 4099879089823
MPN:
SN74145N
Series: 74
SN74145N Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
3.0702 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
76.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
3.0702 €

Decoder/driver, SN74145N, Texas Instruments

The SN74145N monolithic BCD-to-decimal decoder/drivers consist of eight inverters and ten four-input NAND gates. The inverters are connected in pairs to make BCD input data available for decoding by the NAND gates, full decoding of valid BCD input logic ensures that all outputs remain off for all invalid binary input conditions. This product features high-performance, n-p-n output transistors designed for use as indicator/relay drivers or as open-collector logic-circuit drivers. Each of the highbreakdown output transistors (15 volts) will sink up to 80 mil.

Features

  • Fully decoding of input logic
  • Have 80-mA sink-current capability
  • All outputs are off for invalid BCD input conditions
Technical specifications
Filter Property Value
Product type BCD to Decimal Decoder/Driver
max. operating temperature 70 °C
min. operating temperature 0 °C
Output current 80 mA
Enclosure PDIP-16
Assembly THT
Logistics
Property Value
Original Packaging Bar with 25 pieces
Customs tariff number 85423390
Country of origin MY
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
