SN74123N | Texas Instruments

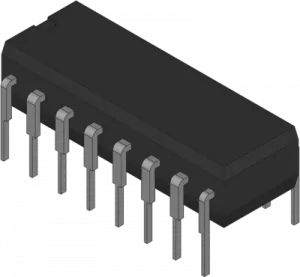

Multivibrator, PDIP-16, Texas Instruments SN74123N
Unit Price (€ / pc.)
4.2126 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
105.32 € *
Price list
Quantity
Price per unit*
25 pcs.
4.2126 €
100 pcs.
4.0460 €
250 pcs.
3.8675 €
*incl. VAT plus shipping costs
Subject to prior sale
Monoflop, SN74123N, Texas Instruments
The SN74123N is a retriggerable monostable multivibrator feature output pulseduration control by three methods. The basic pulse time is programmed by selection of external resistance and capacitance values (see typical application data). This device is provided enough Schmitt hysteresis to ensure jitter-free triggering from the B input with transition rates as slow as 0.1 millivolt per nanosecond.
Features
- D-C Triggered from active-high or active-low gated logic inputs
- Retriggerable for very long output pulses, up to 100% duty cycle
- Overriding clear terminates output pulse
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C | |
| Enclosure | PDIP-16 | |
| Output current | 16 mA | |
| Product type | Multivibrator | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
