SN7406N | Texas Instruments

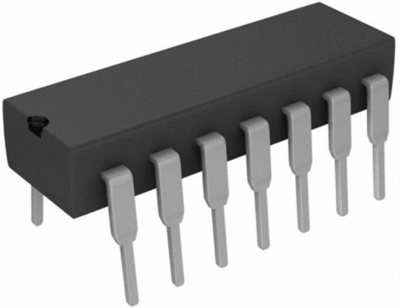

Hex inverter buffer/driver, PDIP-14, Texas Instruments SN7406N
Unit Price (€ / pc.)
0.6188 € *
Available: 109 pcs.
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
25 pcs.
0.5831 €
100 pcs.
0.5355 €
250 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex inverter buffer/driver, SN7406N, Texas Instruments
The SN7406N is a TTL hex inverter buffer/driver features high-voltage open-collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays). It also are characterized for use as inverter buffers for driving TTL inputs. This device has minimum breakdown voltages of 30 V.
Features
- Convert TTL voltage levels to MOS levels
- High sink-current capability
- Input clamping diodes simplify system design
- Open-collector drivers for indicator lamps and relays
- Inputs fully compatible with most TTL circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-14 | |
| Input voltage | 5.25 V | |
| Product type | Hex inverter buffer/driver | |
| Output current | 40 mA | |
| max. operating temperature | 70 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
