SN65220DBVR | Texas Instruments

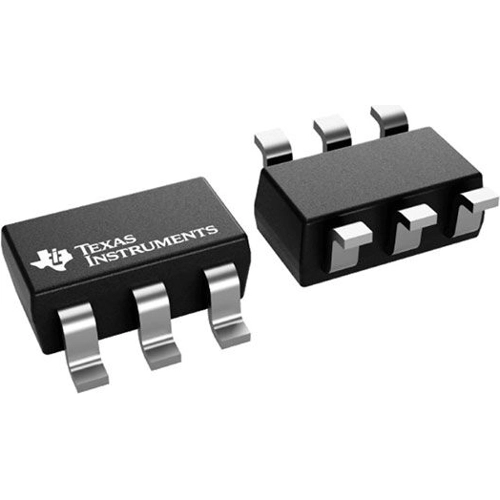

USB port transient suppressor, SOT-23, Texas Instruments SN65220DBVR
Order No.: 70S1624
MPN:
SN65220DBVR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.1543 € *
Available in 5 Days: 2,050 pcs. - if ordered today
Total Price:
57.71 € *
Price list
Quantity
Price per unit*
50 pcs.
1.1543 €
100 pcs.
1.0829 €
250 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
USB Port Transient Suppressor, SN65220DBVR, Texas Instruments
The SN65220DBVR is a dual unidirectional transient voltage suppressor (TVS), and the SN65240 and SN75240 are quadruple unidirectional TVS devices. They provide electrical noise transient protection for Universal Serial Bus (USB) low- and full-speed ports. The input capacitance of 35 pF makes them unsuitable for high-speed USB 2.0 applications. Cabled I/O lines can be exposed to electrical noise transients from various sources. These transients can damage the USB transceiver or USB ASIC if they are of sufficient magnitude and duration.
Applications
- USB full-speed host, HUB, or peripheral
- Ports
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | USB port transient suppressor | |
| Enclosure | SOT-23 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
