JM38510/30502BDA | Texas Instruments

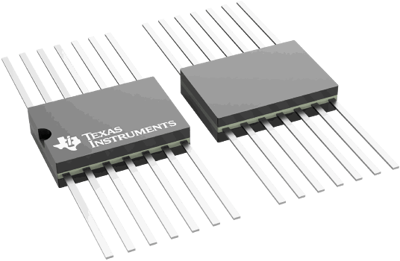

4 channel XOR gate, with 2 inputs, CFP-14, Texas Instruments JM38510/30502BDA
Order No.: 57S0933
MPN:
JM38510/30502BDA
Unit Price (€ / pc.)
17.8738 € *
Standard delivery time from the manufacturer is: 2 Weeks
Quadruple 2-input exclusive, JM38510/30502BDA, Texas Instruments
This device contains four independent 2-input Exclusive-OR gates. It performs the Boolean function in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input will be reproduced in true form at the output. If one of the inputs is high, the signal on the other input will be reproduced inverted at the output. The JM38510/30502BDA is characterized for operation from 0°C to 70°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | CFP-14 | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Number of channels | 4 | |
| Version | with 2 inputs | |
| Product type | 4 channel XOR gate |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
