CD74HCT85M | Texas Instruments

Comparator, SOIC-16, Texas Instruments CD74HCT85M

Order No.: 62S8785
MPN:
CD74HCT85M
Series: 74HCT
CD74HCT85M Texas Instruments Logic Devices

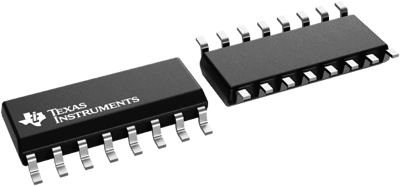

Image may differ
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
0.9996 €
25 pcs.
0.9282 €
100 pcs.
0.8687 €
250 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale

Comparator, CD74HCT85M, Texas Instruments

The CD74HCT85M is a high-speed magnitude comparator that uses silicon-gate CMOS technology to achieve operating speed similar to LSTTL with the low power consumption of a standard CMOS integrated circuit. This 4-bit device compares two binary, BCD, or other monotonic code and presents the three possible magnitude results at the output (A > B, A < B, and A = B). The 4-bit input word is weighted (A0 to A3 and B0 to B3), where A3 and B3 are the most significant bits.

Features

  • Buffered inputs and outputs
  • Balanced propagation delay and transition times
  • Significant power reduction compared to LSTTL Logic ICs
Technical specifications
Filter Property Value
Assembly SMD
max. operating temperature 125 °C
Input voltage 5.5 V
Product type comparator
min. operating temperature -55 °C
Output current 4 mA
Enclosure SOIC-16
Logistics
Property Value
Country of origin MX
Customs tariff number 85423390
Original Packaging Bar with 40 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
