CD74HCT32M | Texas Instruments

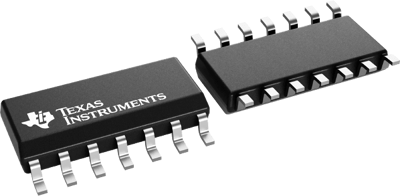

Quadruple 2-Inputs OR Gate, SOIC-14, Texas Instruments CD74HCT32M
Unit Price (€ / pc.)
0.3094 € *
Available: 913 pcs.
Leadtime: On Request **
High-speed CMOS logic, CD74HCT32M, Texas Instruments
The CD74HCT32M is a high-speed CMOS logic quad 2-Input OR gate. This product contains four 2-input OR gates in one package the logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits.
Features
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL Logic ICs
Technical specifications
| Assembly | SMD | |
| Enclosure | SOIC-14 | |
| Output current | 4 mA | |
| Product type | Quadruple 2-Inputs OR Gate | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Input voltage | 5.5 V |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
