CD74HC4538M96 | Texas Instruments

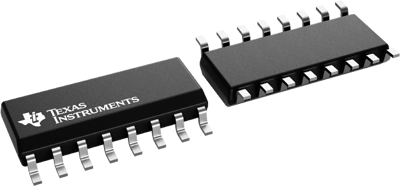

Dual Retriggerable Precision Monostable Multivibrator, SOIC-16, Texas Instruments CD74HC4538M96
Unit Price (€ / pc.)
0.2154 € *
Standard delivery time from the manufacturer is: 6 Weeks
Precision monostable multivibrator, CD74HC4538M96, Texas Instruments
The CD74HC4538M96 is a dual retriggerable/resettable monostable precision multivibrator for fixed voltage timing applications. The adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q terminals. The propagation delay from trigger input-tooutput transition and the propagation delay from reset inputto-output transition are independent of RX and CX.
Features
- Retriggerable/Resettable capability
- Triggering from the leading or trailing edge
- Wide range of output pulse widths
- Significant power reduction compared to LSTTL Logic ICs
- Balanced propagation delay and transition times
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-16 | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Input voltage | 6 V | |
| min. operating temperature | -55 °C | |
| Output current | 5.2 mA | |
| Product type | Dual Retriggerable Precision Monostable Multivibrator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
