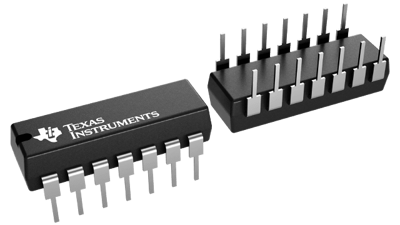

CD74HC4002E | Texas Instruments
Dual 4 input NOR gate, 2-6 V, PDIP-14, Texas Instruments CD74HC4002E
Order No.: 63S3900
MPN:
CD74HC4002E
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 1 Week
Logic Dual 4-Input NOR Gate, CD74HC4002E, Texas Instruments
The CD74HC4002E logic gate utilizes silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates while maintaining the low power consumption of standard CMOS integrated circuits. The device has the ability to drive 10 LSTTL loads.
Features
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL Logic ICs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | dual 4 input NOR gate | |
| Version | 2-6 V | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 2 | |
| Output current | 5.2 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| Country of origin | MY |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
