CD74HC221M | Texas Instruments

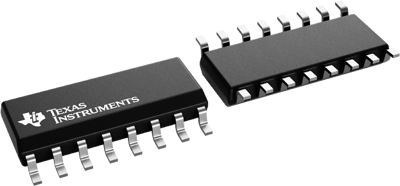

Dual monostable multivibrator, SOIC-16, Texas Instruments CD74HC221M

Order No.: 63S2155
EAN: 4099879086570
MPN:
CD74HC221M
Series: 74HC
CD74HC221M Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
862.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.3451 €

High Speed CMOS Logic Dual Monostable Multivibrator, CD74HC221M, Texas Instruments

The CD74HC221M is a dual Monostable Multivibrator with RESET. An external resistor (RX) and an external capacitor (CX) control the timing and the accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals. Pulse triggering on the B input occurs at a particular voltage level and is not related to the rise and fall time of the trigger pulse. Once triggered, the outputs are independent of further trigger inputs on A\ and B.

Features

  • Overriding RESET terminates output pulse
  • Triggering from the leading or trailing edge
  • Schmitt trigger on B inputs
  • Balanced propagation delay and transition times
  • Significant power reduction compared to LSTTL logic ICs
Technical specifications
Filter Property Value
min. operating temperature -55 °C
Assembly SMD
Input voltage 6 V
Output current 5.2 mA
max. operating temperature 125 °C
Product type dual monostable multivibrator
Enclosure SOIC-16
Logistics
Property Value
Customs tariff number 85423390
MSL MSL 1
Original Packaging Bar with 40 pieces
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
